Gantry Systems provide a stable, large-scale framework, ideal for printing large structures with high precision. They move along fixed axes, offering excellent control for vertical and horizontal layers, making them perfect for building walls and other structural components.
Gantry Systems provide a stable, large-scale framework, ideal for printing large structures with high precision. They move along fixed axes, offering excellent control for vertical and horizontal layers, making them perfect for building walls and other structural components.
VSF Concrete machine models
Download VSF Concrete 3D Printer Brochure
Download VSF Concrete 3D Printer Brochure
VSF compact Prefab printers are available in three sizes and offer you a cost effective way to consistently manufacture high quality parts. The small footprint and low height means you can easily fit them into your factory space.
Printer Setup

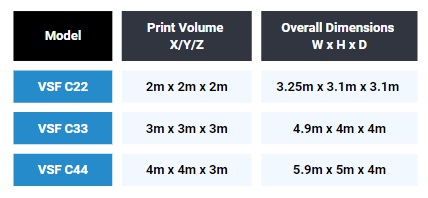

Comes in 3 sizes
High quality printer at value costing
Compact format with speed and precision for quick, reliable concrete printing.
Suitable for workshop with low roof height.
Configuration

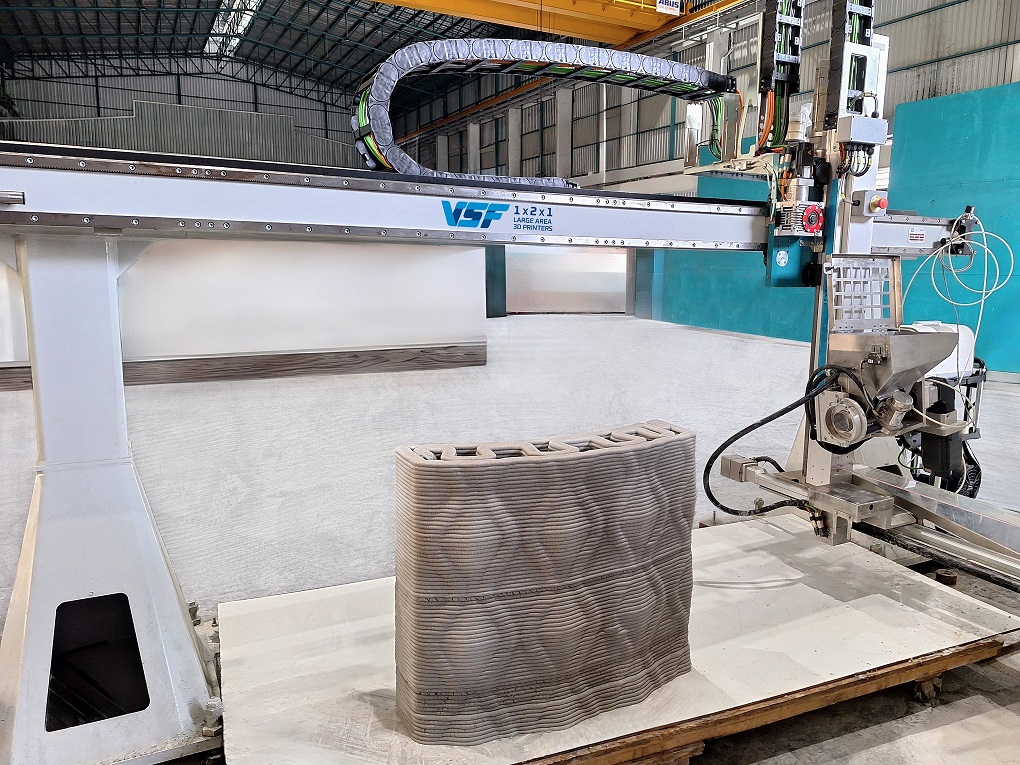

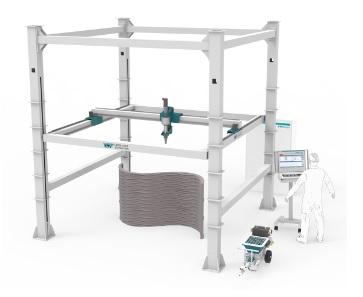

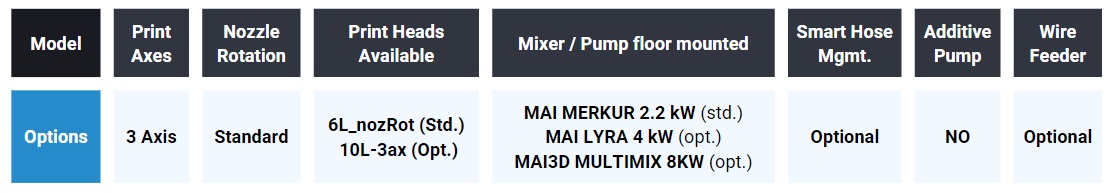

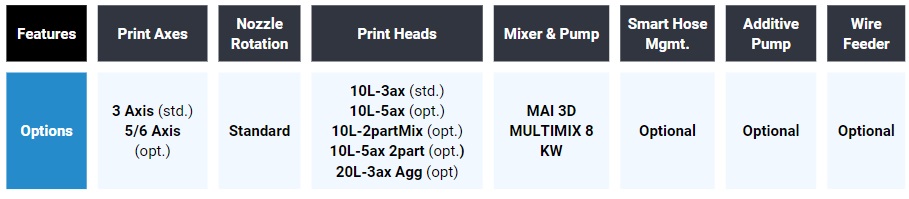

Compact VSF 3DCP systems with X/Y bridge assembly moved up and down on four vertical (Z) leadscrew driven legs. Print Head and intermediate tank with nozzle rotation. Concrete supply from floor mounted mixer/pump.

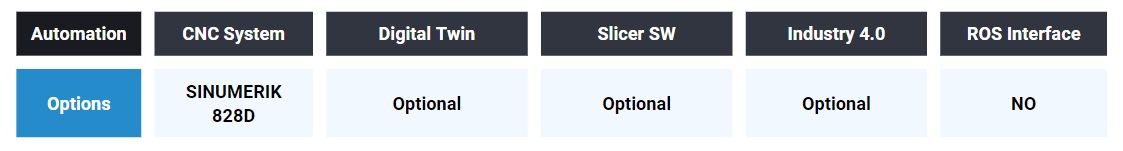

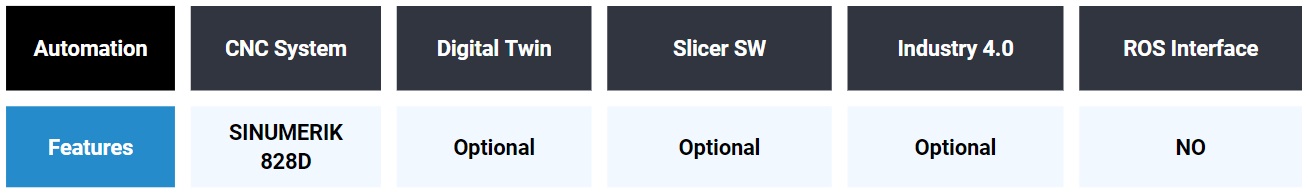

Easy to use SINUMERIK 828D CNC with G code programming, Rhino based slicer and Industry 4.0. Industry standard CNC based programming and operation makes it easy for operators to learn.
Applications
These are VSF highest performance VSF Concrete printers with a wide range of industry leading technology options. Designed for Prefab Construction Companies and Universities or R&D facilities which need a highly flexible and expandable system with many feature applications.
Printer Setup - Standard Sizes

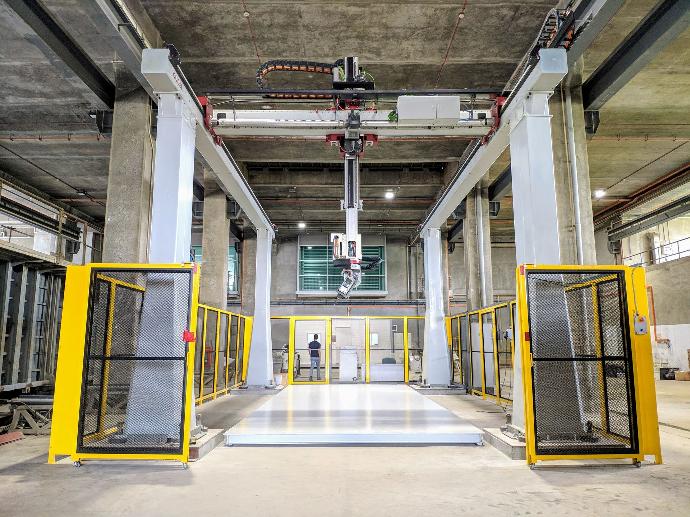

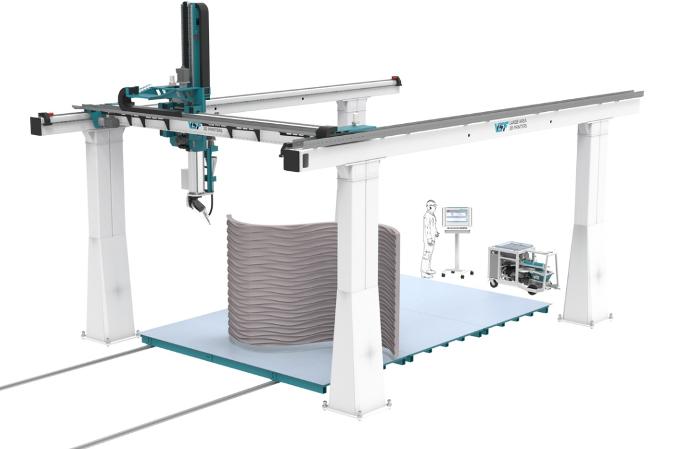

Overhead Gantry with telescoping vertical access to part gives maximum flexibility for 3DCP structures. Powerful Industry 4.0 capabilities for monitoring and control of print process.
Configuration

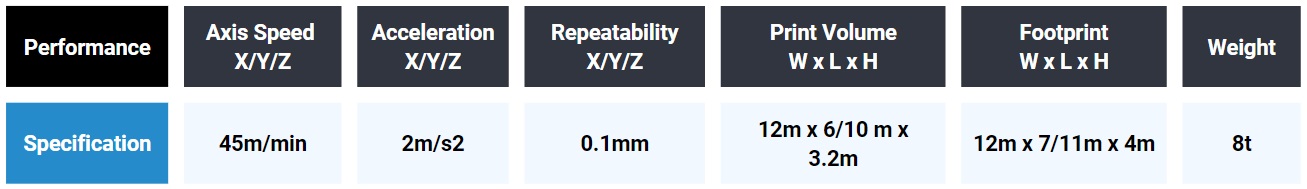

Overhead Gantry with one to four bridges which can be extended in X axis in modular lengths from 6 to 60m. Z vertical print heights 2.4 or 3.2m with standard or telescopic vertical beams. Flexible adaption to fit all of our print head models for 3-6 axis printing. 500kg Payload means we can also add features for component handling, milling and more.
Industry leading Siemens SINUMERIK 0NE CNC with G code programming available up to 31 axes.
Applications

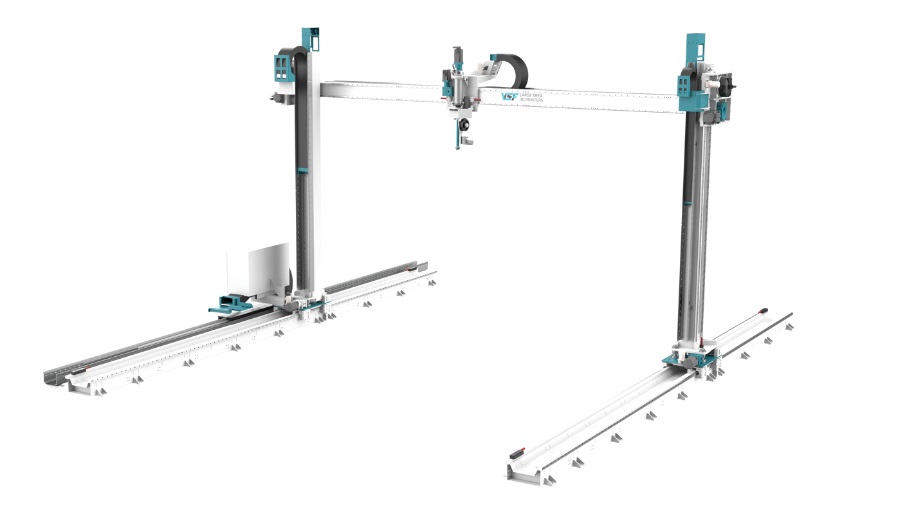

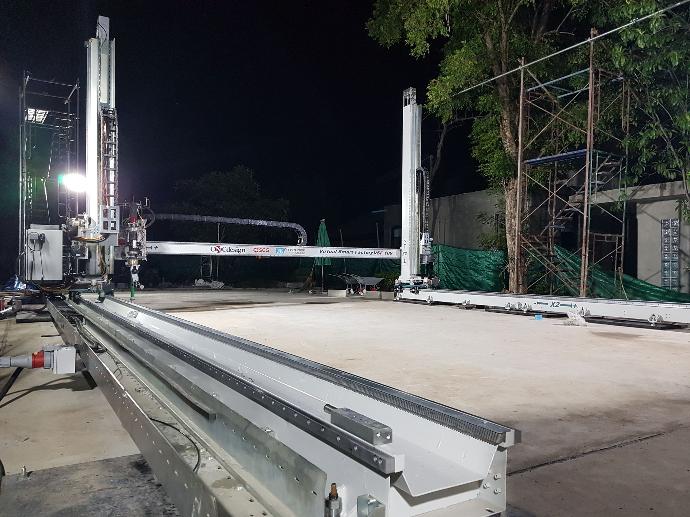

The M1xx Printer Family is a versatile 3DCP for both on site and prefab applications. These printers are characterized by their modular design, allowing for easy disassembly, transportation, and quick reassembly combined with excellent printing performance. This can be used to minimise logistic costs for large projects printing near site, or print directly on site on concrete footings.
Printer Setup

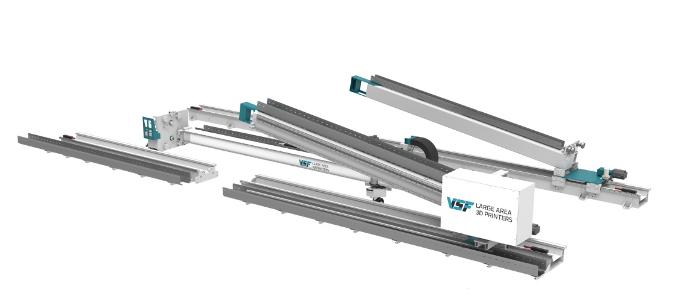

For transportation, the bridge of the printer is detached, the columns hinge down and the floor track is disassembled into sections. Each section is designed to be no longer than 12 meters and of manageable weight, making it quick to relocate within the current site or to a new location.
Integrated sensors detect level and alignment of the columns during operation. This ensures consistently perfect printing results and machine safety.
Configuration
Engineered for 3-axis printing and suitable for onsite printing, with easy relocation within a day. Requires a cover to protect from rain. Floor tracks should be mounted on a concrete slab or footings.

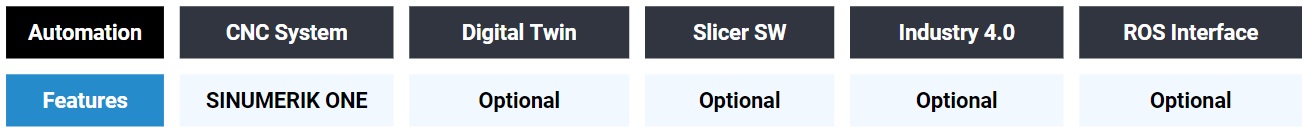

The M1xx Printer Family comes equipped with industry leading CNC, SINUMERIK ONE, with options for digital twin and Industry 4.0 functionality.
Applications

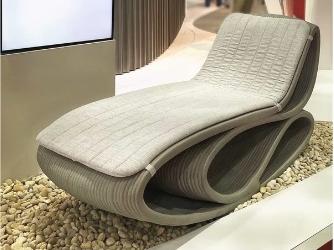

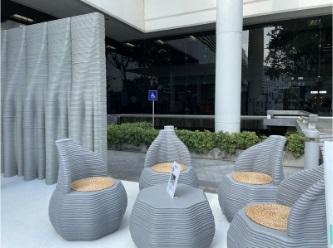

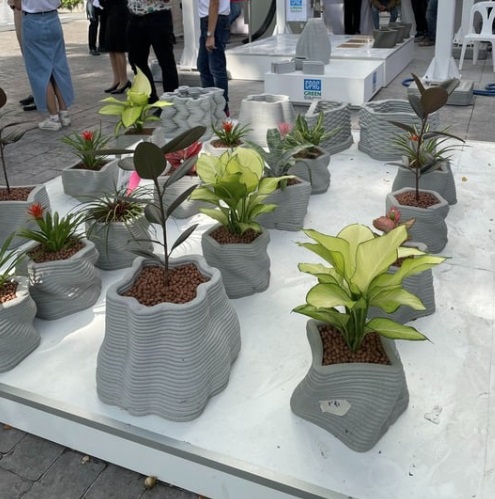

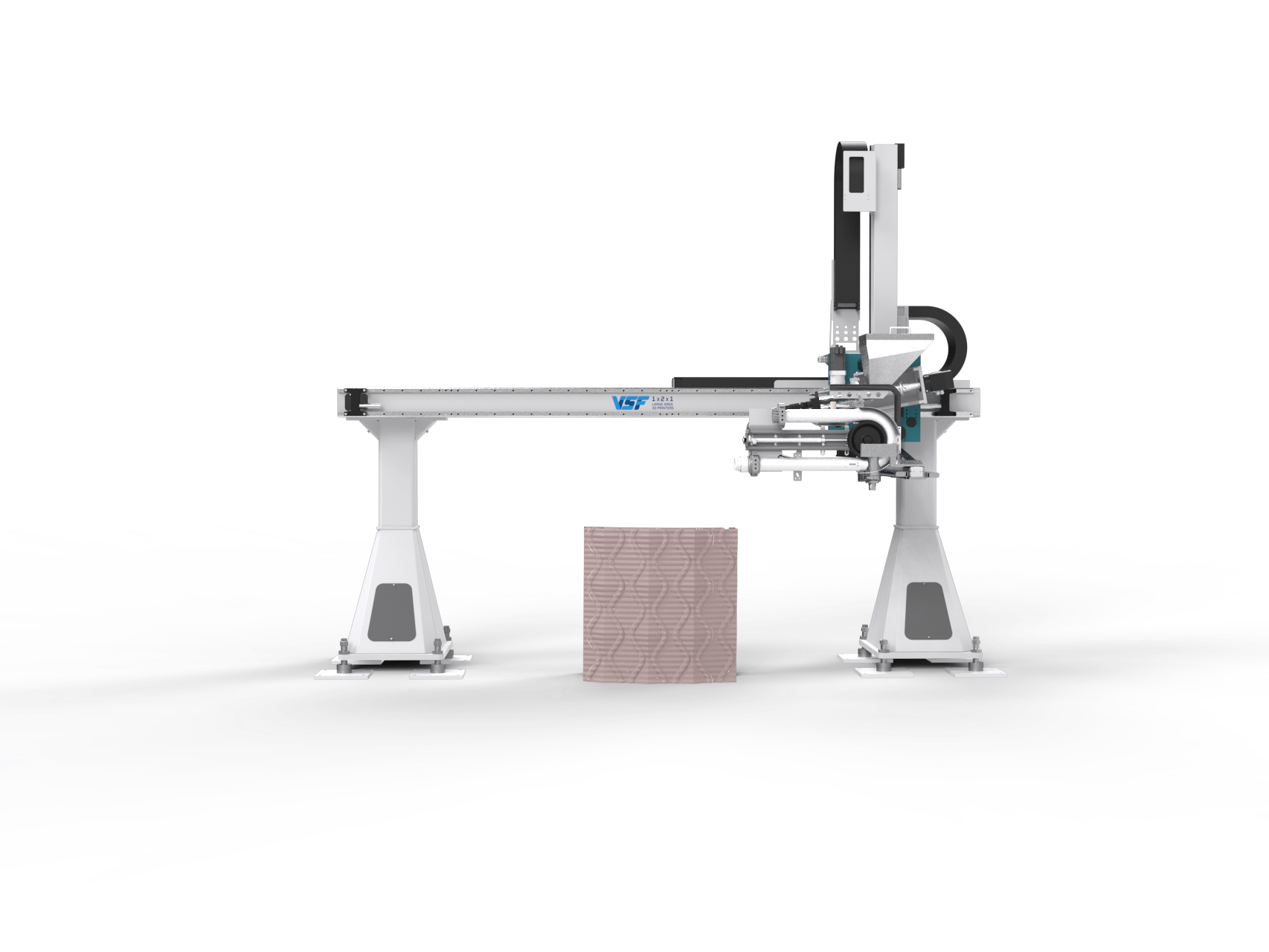

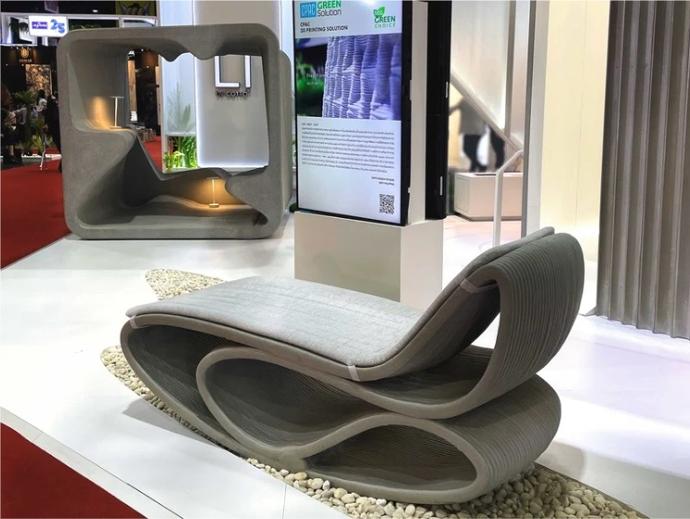

The VSF CW Gantry Printer is uniquely designed for cost effective manufacture of low height walls, facade elements, and features. It is also ideal for planters, landscaping parts and furniture. This makes high quality unique or customised parts for small applications at a efficient price.
Printer Capacity

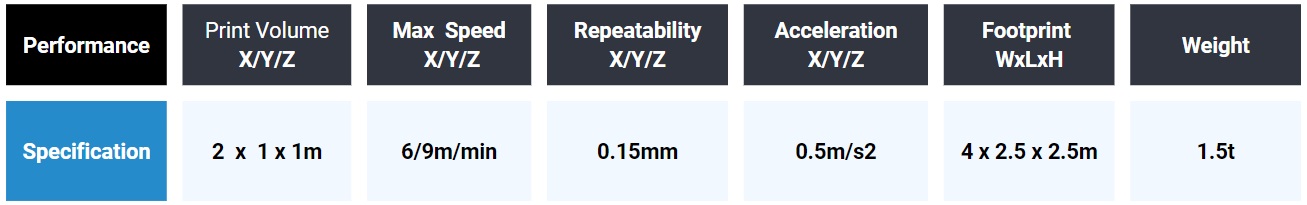

VSF CW has a maximum print volume of 2m long, 1m wide and 1m high. It has a small manually loaded hopper mixer with a 10L capacity.
Configuration

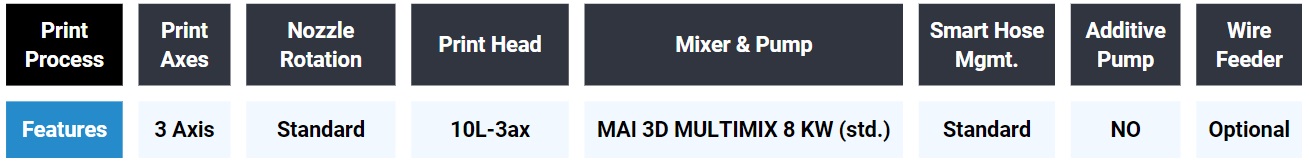

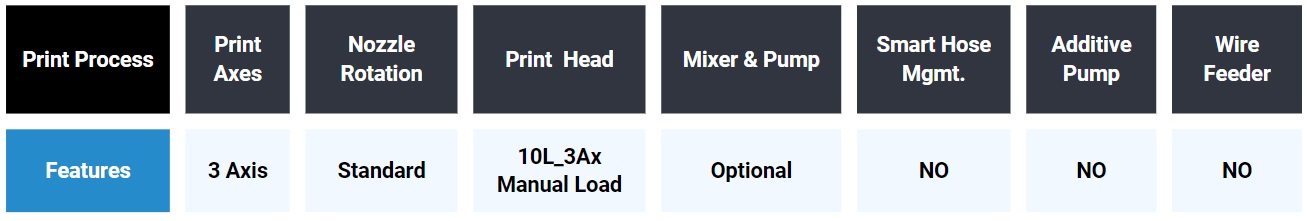

The VSF CW printer is engineered for 3-axis printing and is intended for manual loading of concrete which has been mixed locally. This keeps material use and wastage low for small production runs.
Easy to use SINUMERIK 828D CNC with G code programming, Rhino based slicer and Industry 4.0. Industry standard CNC based programming and operation makes it easy for operators to learn.
Applications
VSF compact Prefab printers are available in three sizes and offer you a cost effective way to consistently manufacture high quality parts. The small footprint and low height means you can easily fit them into your factory space.
Printer Setup
Comes in 3 sizes
High quality printer at value costing
Compact format with speed and precision for quick, reliable concrete printing.
Suitable for workshop with low roof height.
Configuration
Compact VSF 3DCP systems with X/Y bridge assembly moved up and down on four vertical (Z) leadscrew driven legs. Print Head and intermediate tank with nozzle rotation. Concrete supply from floor mounted mixer/pump.
Easy to use SINUMERIK 828D CNC with G code programming, Rhino based slicer and Industry 4.0. Industry standard CNC based programming and operation makes it easy for operators to learn.
Applications
These are VSF highest performance VSF Concrete printers with a wide range of industry leading technology options. Designed for Prefab Construction Companies and Universities or R&D facilities which need a highly flexible and expandable system with many feature applications.

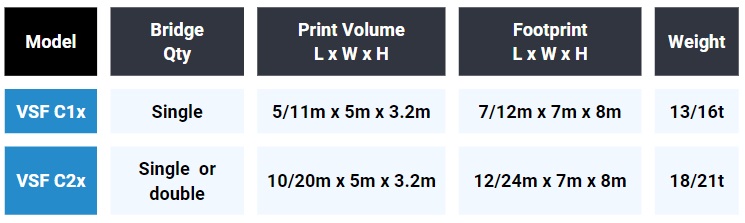

Printer Setup - Standard Sizes
Overhead Gantry with telescoping vertical access to part gives maximum flexibility for 3DCP structures. Powerful Industry 4.0 capabilities for monitoring and control of print process.
Configuration
Overhead Gantry with one to four bridges which can be extended in X axis in modular lengths from 6 to 60m. Z vertical print heights 2.4 or 3.2m with standard or telescopic vertical beams. Flexible adaption to fit all of our print head models for 3-6 axis printing. 500kg Payload means we can also add features for component handling, milling and more.
Industry leading Siemens SINUMERIK 0NE CNC with G code programming available up to 31 axes.
Applications
The M1xx Printer Family is a versatile 3DCP for both on site and prefab applications. These printers are characterized by their modular design, allowing for easy disassembly, transportation, and quick reassembly combined with excellent printing performance. This can be used to minimise logistic costs for large projects printing near site, or print directly on site on concrete footings.
Printer Setup
For transportation, the bridge of the printer is detached, the columns hinge down and the floor track is disassembled into sections. Each section is designed to be no longer than 12 meters and of manageable weight, making it quick to relocate within the current site or to a new location.
Integrated sensors detect level and alignment of the columns during operation. This ensures consistently perfect printing results and machine safety.
Configuration
Engineered for 3-axis printing and suitable for onsite printing, with easy relocation within a day. Requires a cover to protect from rain. Floor tracks should be mounted on a concrete slab or footings.
The M1xx Printer Family comes equipped with industry leading CNC, SINUMERIK ONE, with options for digital twin and Industry 4.0 functionality.
Applications
The VSF CW Gantry Printer is uniquely designed for cost effective manufacture of low height walls, facade elements, and features. It is also ideal for planters, landscaping parts and furniture. This makes high quality unique or customised parts for small applications at a efficient price.
Printer Capacity
VSF CW has a maximum print volume of 2m long, 1m wide and 1m high. It has a small manually loaded hopper mixer with a 10L capacity.
Configuration
The VSF CW printer is engineered for 3-axis printing and is intended for manual loading of concrete which has been mixed locally. This keeps material use and wastage low for small production runs.
Easy to use SINUMERIK 828D CNC with G code programming, Rhino based slicer and Industry 4.0. Industry standard CNC based programming and operation makes it easy for operators to learn.
Applications
