Concrete Mixing system
We offer pumps, mixers and conveying equipment from MAI and m-tec, both Germany manufacturers with local support and high quality.
Mortar mixers can be supplied for local mixing of mortar for manual loading in small batches.
Conveying pumps are suitable for feeding pre-mixed cement to the printer.
m-tec 2000 and the MAI Multimix 3D combine both operations and we can integrate these for programmable supply volume.
VSF Systems can be provided with other conveying equipment as well as hoppers and filters.
Concrete Mixing system
We offer pumps, mixers and conveying equipment from MAI and m-tec, both Germany manufacturers with local support and high quality.
Mortar mixers can be supplied for local mixing of mortar for manual loading in small batches.
Conveying pumps are suitable for feeding pre-mixed cement to the printer.
m-tec 2000 and the MAI Multimix 3D combine both operations and we can integrate these for programmable supply volume.
VSF Systems can be provided with other conveying equipment as well as hoppers and filters.

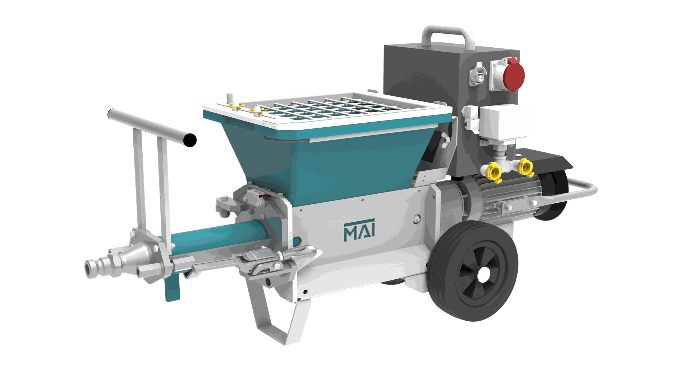

MAI LYRA 4 kW universal adjustable conveying pump
• Maximum particle size 4 mm.
• Drive power: 4.0kW
• Electrical connection: 380-400V 3 Phase
• Adjustable output feed
• Feed flowrate: 2.5-9.5 l/min
• Hose diameter 25 mm.
• Size 1451 x 452 x 725 mm.
• Weight 110 Kg

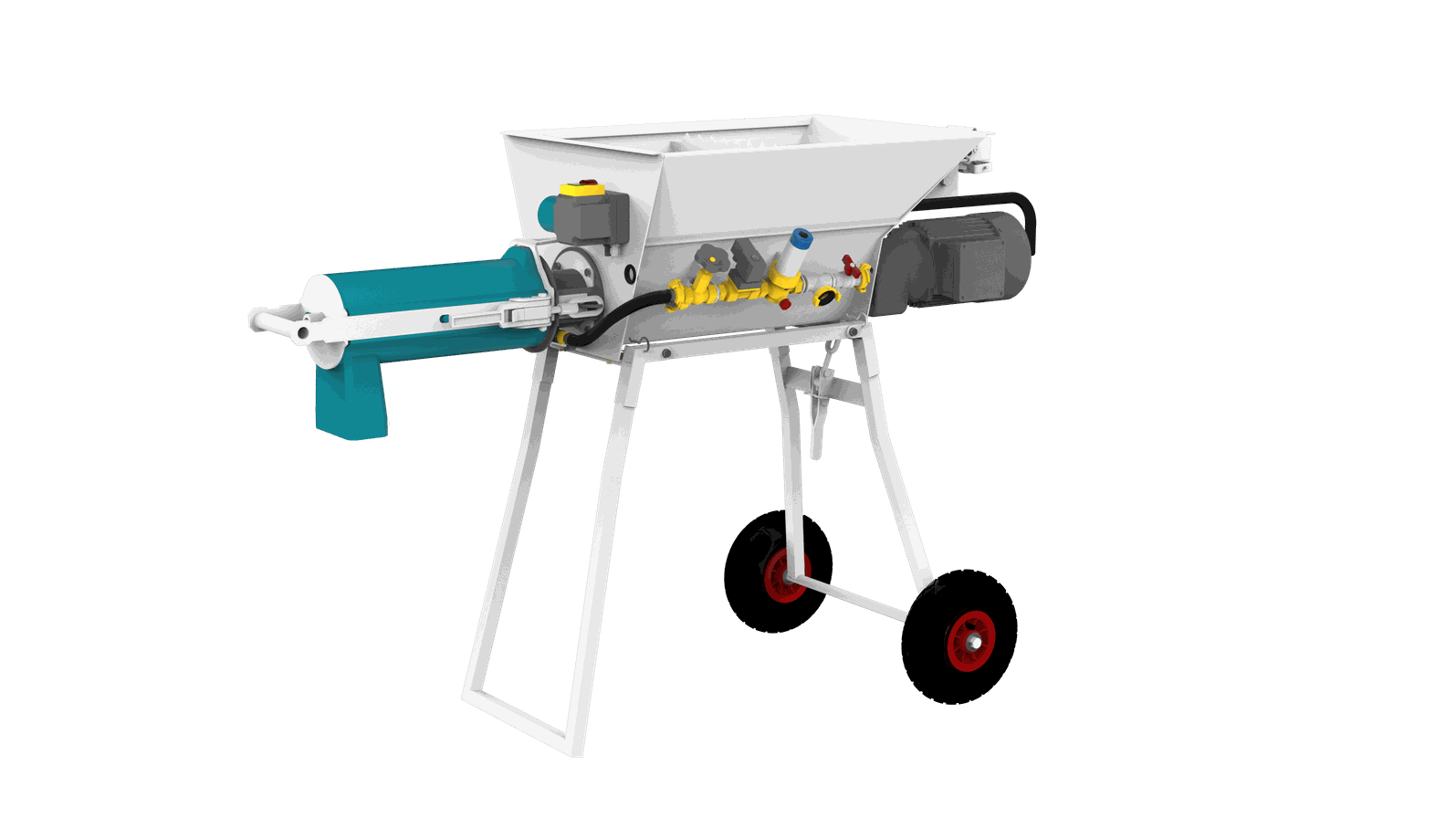

MAI MERKUR 2.2 kW small universal mortar mixer
• Maximum particle size 4 mm.
• Drive power: 2.2kW
• Electrical connection: 220V 1 Phase
• Water system with solenoid valve
• Water regulating valve with gauge
• Delivery screw
• Size 1685 x 670 x 1073 mm.
• Weight 96 Kg

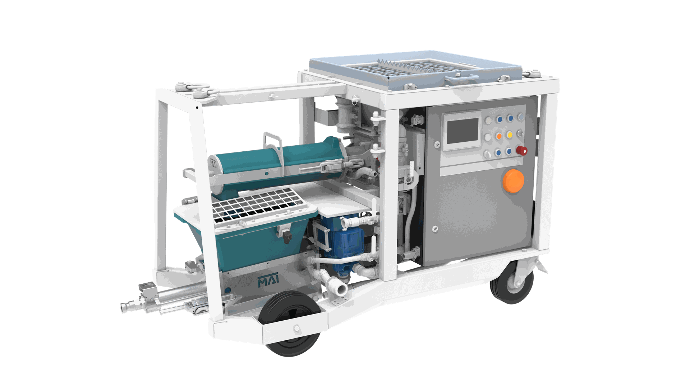

MAI MULTIMIX 3D 8 KW Floor Mounted mixer / pump
• Hopper Capacity 45L
• Maximum particle size 2 mm
• Pump Capacity 1.5 - 81 L/min
• Pump Outlet SizeNW25
• Dimensions 2010 x 750 x 1030
• Weight 360 Kg

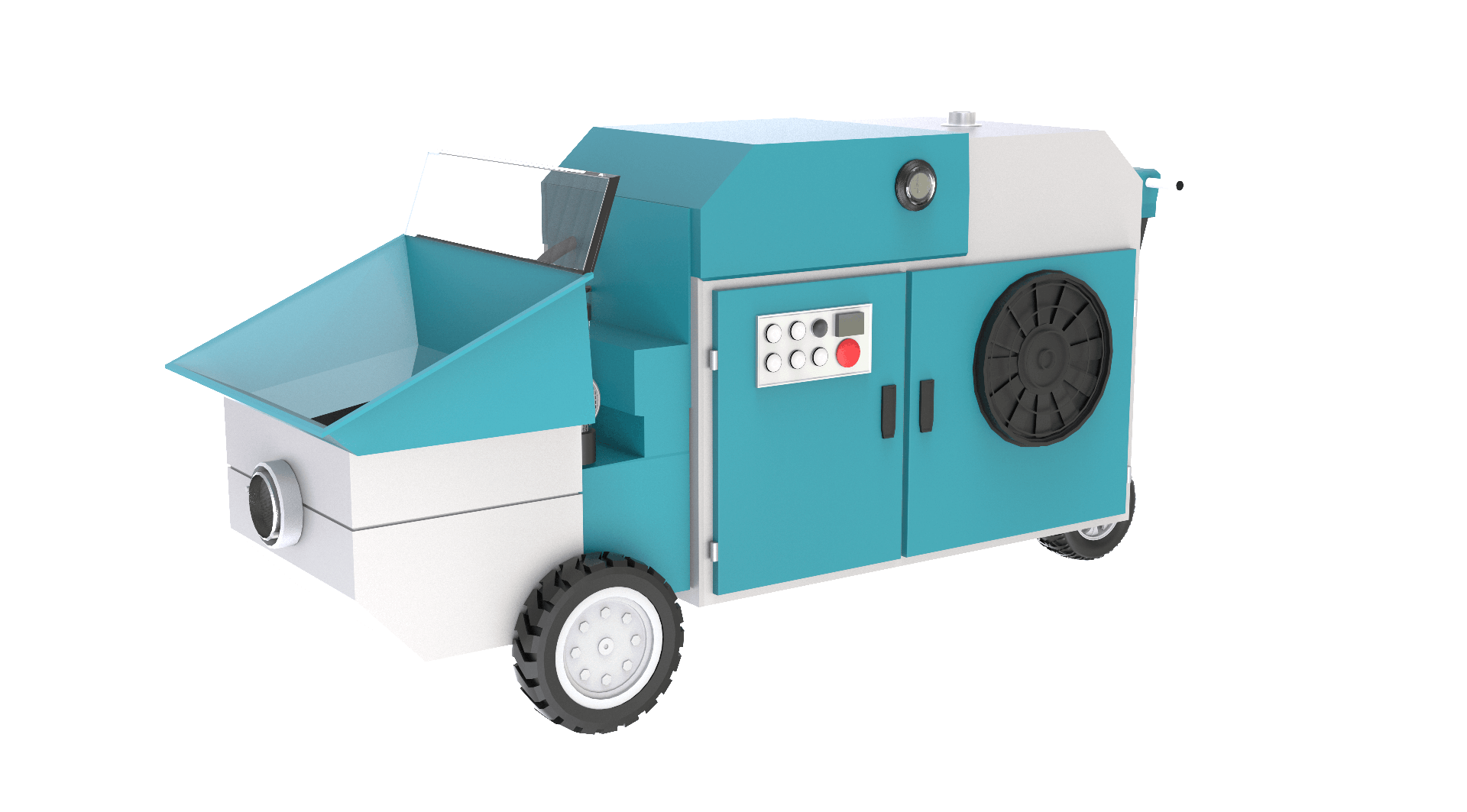

Floor Mounted Electrical Concrete Pump 22 KW
• Maximum aggregate size 20mm
• Transfer Capacity 10 M3/Hr
• Outlet Hose/Port Diameter 80/100 mm
• Size 2500 x 1100 x 1400
• Weight 950 Kg
MAI LYRA 4 kW universal adjustable conveying pump
• Maximum particle size 4 mm.
• Drive power: 4.0kW
• Electrical connection: 380-400V 3 Phase
• Adjustable output feed
• Feed flowrate: 2.5-9.5 l/min
• Hose diameter 25 mm.
• Size 1451 x 452 x 725 mm.
• Weight 110 Kg
MAI MERKUR 2.2 kW small universal mortar mixer
• Maximum particle size 4 mm.
• Drive power: 2.2kW
• Electrical connection: 220V 1 Phase
• Water system with solenoid valve
• Water regulating valve with gauge
• Delivery screw
• Size 1685 x 670 x 1073 mm.
• Weight 96 Kg
MAI MULTIMIX 3D 8 KW Floor Mounted mixer / pump
• Hopper Capacity 45L
• Maximum particle size 2 mm
• Pump Capacity 1.5 - 81 L/min
• Pump Outlet SizeNW25
• Dimensions 2010 x 750 x 1030
• Weight 360 Kg
Floor Mounted Electrical Concrete Pump 22 KW
• Maximum aggregate size 20mm
• Transfer Capacity 10 M3/Hr
• Outlet Hose/Port Diameter 80/100 mm
• Size 2500 x 1100 x 1400
• Weight 950 Kg
The key advantages of pumps and mixers:
Separate mixing and pumping device
Variable pumping performance by constant mixing quality
High speed mixer and extra long mixing tube for excellent mixing quality
Control functions for dry material and water secure continuous mixing quality
Interface to CNC for setting of print rate
Separate mixing and pumping device
Variable pumping performance by constant mixing quality
High speed mixer and extra long mixing tube for excellent mixing quality
Control functions for dry material and water secure continuous mixing quality
Interface to CNC for setting of print rate
The MAI pumps and mixers can be used with CNC Design Print Head and Nozzle systems. This has a horizontal mixer and pumping system and is well proven for 3DCP applications. Contac Us to know more
The MAI pumps and mixers can be used with CNC Design Print Head and Nozzle systems. This has a horizontal mixer and pumping system and is well proven for 3DCP applications.
Contac Us to know more.
Want to know more?
